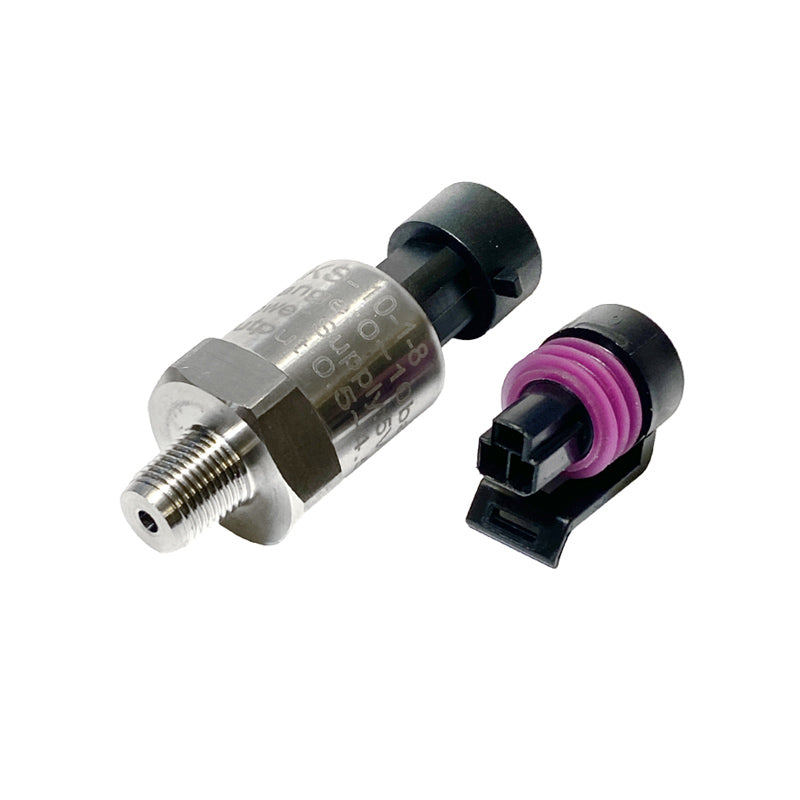

10 BAR (150 PSI) fuel/oil pressure sensor, 1/8 NPT, with connector

$59.70

Brand: Nuke Performance

Availability: Out Of Stock

A pressure sensor that can be fitted to the Nuke Performance FPR100 series fuel pressure regulators.Affordable and durable fuel and oil pressure sensor that fits straight into the 1/8 NPT thread of the Nuke Performance fuel pressure regulators, the FPR100s AN-6, FPR100m AN-8, and FPR100x AN-10.• Stainless steel (billet) body•...

Qty:

Description

Description

A pressure sensor that can be fitted to the Nuke Performance FPR100 series fuel pressure regulators.

Affordable and durable fuel and oil pressure sensor that fits straight into the 1/8 NPT thread of the Nuke Performance fuel pressure regulators, the FPR100s AN-6, FPR100m AN-8, and FPR100x AN-10.

• Stainless steel (billet) body
• For measuring fuel and oil pressure
• Compatible with motor oils, fuel, E85, and Bio Ethanol (RE85)
• 1/8 NPT male thread

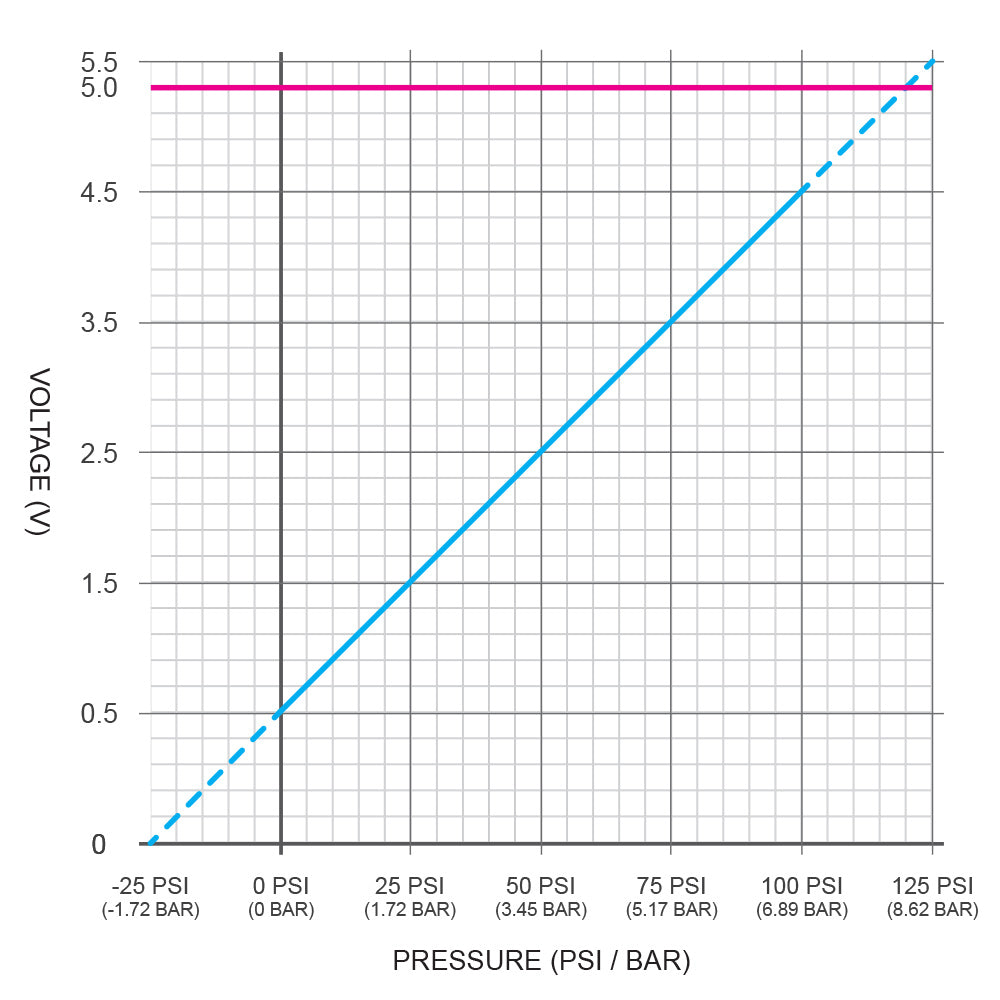

• Input 5V, Output 0.5 - 4.5V
• 3 pole Packard type connector with terminals including

Pin 1 : VCC(+) / Red
Pin 2 : GND / Black
Pin 3 : Signal(+) / Blue/Green
Shield : Shield / Yellow

Can be fitted to either a fuel pressure regulator with a 1/8 NPT female threaded port or adapters such as the Nuke Performance fuel pressure gauge adapter (available here).

Also available: With shielded cable Part # : 70-1018C

Disclaimer: This is not a Nuke Performance official product, this is only available as an accessory to our product range.

Quantity: 1pc
